PANASONIC 松下/ 國際牌液晶投影機配件型號( 燈泡/鏡頭 ) 對照表 1/2

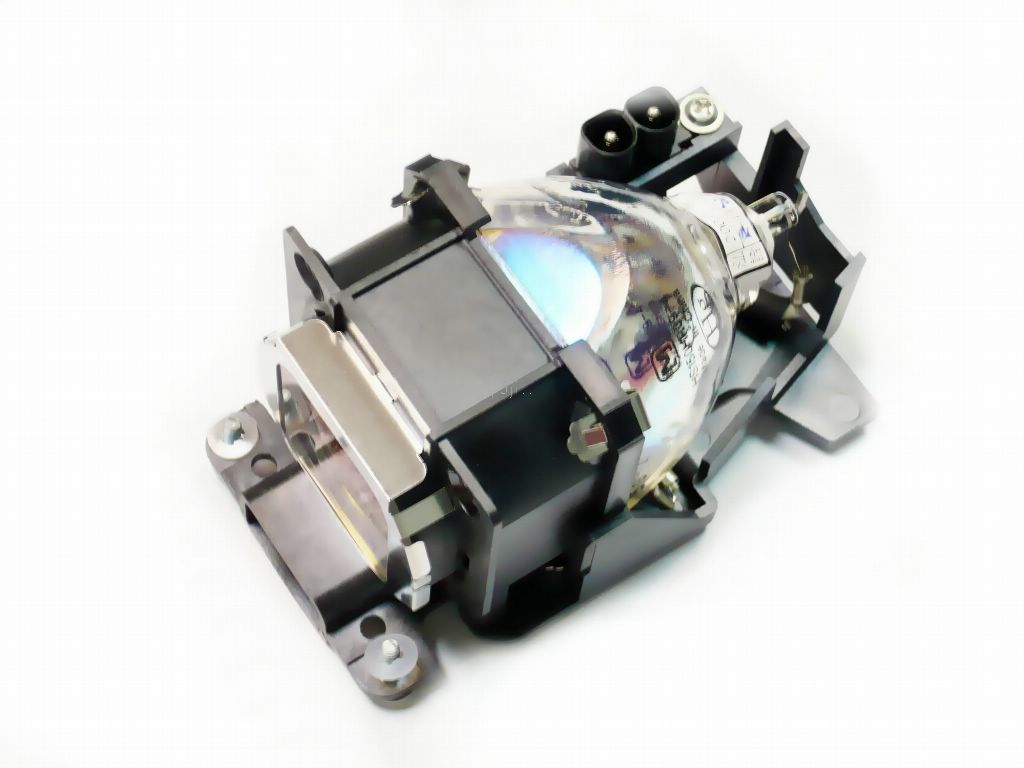

Replacement lamp unit 燈泡
| Model Number | Type | 投影機型號 |
|---|---|---|
| ET-LAD520 | UHM lamp x 1 | PT-DZ21K2, PT-DS20K2, PT-DW17K2, PT-DZ16K2 |
| ET-LAD520F | UHM lamp x 4 | |
| ET-LAD520P (停產) |
UHM lamp x 1 | |
| ET-LAD520PF (停產) |
UHM lamp x 4 | |
| ET-LAD510 | 465 W UHM lamp x 1 | PT-DZ21K, PT-DS20K, PT-DW17K, PT-DZ16K |
| ET-LAD510F | 465 W UHM lamp x 4 | |
| ET-LAD510P (停產) |
465 W UHM lamp x 1 | PT-DZ21K, PT-DS20K, PT-DW17K |
| ET-LAD510PF (停產) |
465 W UHM lamp x 4 | |
| ET-LAD310A | 380 W UHM lamp x 1 | PT-DZ13K, PT-DS12K, PT-DW11K, PT-DZ10K, PT-DZ8700/DZ110X, PT-DS8500/DS100X, PT-DW8300/DW90X |
| ET-LAD310AW | 380 W UHM lamp x 2 | |
| ET-LAD320P (停產) |
380 W UHM lamp x 1 | PT-DZ13K, PT-DS12K, PT-DW11K, PT-DZ10K |
| ET-LAD320PW (停產) |
380 W UHM lamp x 2 | |
| ET-LAE16 | 380 W UHM lamp x 1 | PT-EX16K |
| ET-LAE12 | 380 W UHM lamp x 1 | PT-EX12K |
| ET-LAD120 | 420 W UHM lamp x 1 | PT-DZ870, PT-DW830, PT-DX100 |
| ET-LAD120W | 420 W UHM lamp x 2 | |
| ET-LAD120P (停產) |
420 W UHM lamp x 1 | |
| ET-LAD120PW (停產) |
420 W UHM lamp x 2 | |
| ET-LAD70 | 310 W UHM lamp x 1 | PT-DW750, PT-DX820 |
| ET-LAD70W | 310 W UHM lamp x 2 | |
| ET-LAE300 | 400 W UHM lamp x 1 | PT-EZ770Z, PT-EW730Z, PT-EX800Z, PT-EZ580, PT-EW640, PT-EW540, PT-EX610, PT-EX510 |
| ET-LAEF100 | 320 W UHM lamp x 1 | PT-EZ590, PT-EW650, PT-EX620, PT-EW550, PT-EX520, PT-FZ570, PT-FW530, PT-FX500 |
| ET-LAF100A | 250 W UHM lamp x 1 | PT-FW430, PT-FX400 |
| ET-LAA110 | 280 W UHM lamp x 1 | PT-LZ370, PT-AR100/AH1000 |
| ET-LAV400 | 280 W UHM lamp x 1 | PT-VZ585N, PT-VZ580, PT-VZ470*, PT-VW545N, PT-VW540, PT-VX615N, PT-VX610, PT-VZ575N*, PT-VZ570*, PT-VW535N*, PT-VW530*, PT-VX605N*, PT-VX600* |
| ET-LAV300 | 230 W UHM lamp x 1 | PT-VW360, PT-VX430, PT-VW355N, PT-VW350, PT-VX425N, PT-VX420, PT-VW345NZ, PT-VW340Z, PT-VX415NZ, PT-VX410Z, PT-VX42Z |
| ET-LAL510 | 230 W UHM lamp x 1 | PT-LB426, PT-LB386, PT-LB356, PT-LW376, PT-LW336, PT-LB306, PT-TW381R, PT-TW380, PT-TX440, PT-TX350, PT-LB425, PT-LB385, PT-LB355, PT-LW375, PT-LW335, PT-LB305, PT-TW371R, PT-TW370, PT-TX430, PT-TX340 |
| ET-LAL500 | 230 W UHM lamp x 1 | PT-LB412, PT-LB382, PT-LB332, PT-LW362, PT-LW312, PT-LW330, PT-LW280, PT-LB360, PT-LB330, PT-LB300, PT-LB280, PT-TW343R, PT-TW342, PT-TX402, PT-TX312, PT-TW341R, PT-TW340, PT-TW250, PT-TX400, PT-TX310, PT-TX210 |
| ET-LAL340 | 240 W UHM lamp x 1 | PT-LX351 |
| ET-LAL330 | 190 W UHM lamp x 1 | PT-LW321, PT-LW271, PT-LX271 |
| ET-LAL331 | 190 W UHM lamp x 1 | PT-LX321, PT-TW240 |
| ET-LAC300 | 280 W UHM lamp x 1 | PT-CW331R, PT-CW330, PT-CX301R, PT-CX300 |
| ET-LAC200 | 240 W UHM lamp x 1 | PT-CW241R, PT-CW240 |
| ET-LAT100 | 230 W UHM lamp x 1 | PT-TW231R, PT-TW230 |
| ET-LAA410 | 220 W UHM lamp x 1 | PT-AE8000/AT6000 |
* Output becomes 270 W when this model is used.
Lens 鏡頭
| Model Number | Type | 投影機型號 |
|---|---|---|
| ET-D3QW200 | Zoom lens | PT-RQ50K |
| ET-D3QW300 | Zoom lens | |
| ET-D3QS400 | Zoom lens | |
| ET-D3QT500 | Zoom lens | |
| ET-D3QT600 | Zoom lens | |
| ET-D3QT700 | Zoom lens | |
| ET-D3QT800 | Zoom lens | |
| ET-D75LE95/ D75LE90 |
Fixed-focus lens | PT-RQ35K2/RZ34K2, PT-RQ35K/RZ34K, PT-RQ32K, PT-RZ31K/RS30K, PT-RQ25K, PT-RZ24K, PT-RQ18K, PT-RZ17K, PT-RZ14K, PT-RQ22K, PT-RZ21K/RS20K, PT-RZ16K, PT-RQ13K, PT-RZ12K, PT-RS11K, PT-DZ21K2, PT-DS20K2, PT-DW17K2, PT-DZ16K2, PT-DZ21K, PT-DS20K, PT-DW17K, PT-DZ16K, PT-DZ13K, PT-DS12K, PT-DW11K, PT-DZ10K Note : PT-RQ35K2/PT-RZ34K2, PT-RQ35K/PT-RZ34K/PT-RQ32K/PT-RZ31K/PT-RS30K/PT-RQ25K/PT-RZ24K/PT-RQ18K/PT-RZ17K/PT-RQ22K/PT-RZ21K/PT-RS20K does not support ET-D75LE90 |
| ET-D3LEU100 | Fixed-focus lens | PT-RQ35K2/RZ34K2, PT-RQ35K/RZ34K, PT-RQ32K, PT-RZ31K/RS30K, PT-RQ25K, PT-RZ24K, PT-RQ18K, PT-RZ17K, PT-RZ14K, PT-RQ22K, PT-RZ21K/RS20K, PT-RZ16K, PT-RQ13K, PT-RZ12K, PT-RS11K, PT-DZ21K2, PT-DS20K2, PT-DW17K2, PT-DZ16K2, PT-DZ13K, PT-DS12K, PT-DW11K, PT-DZ10K |
| ET-D3LEU101 | Fixed-focus lens | PT-RQ35K2/RZ34K2, PT-RQ35K/RZ34K, PT-RQ32K, PT-RZ31K/RS30K, PT-RQ25K, PT-RZ24K, PT-RQ18K, PT-RZ17K, PT-RZ14K, PT-RQ22K, PT-RZ21K/RS20K, PT-RZ16K PT-RQ13K, PT-RZ12K, PT-RS11K |
| ET-D3LEW50 | Fixed-focus lens | PT-RQ35K2/RZ34K2, PT-RQ35K/RZ34K, PT-RQ32K, PT-RZ31K/RS30K, PT-RQ25K, PT-RZ24K, PT-RQ18K, PT-RZ17K, PT-RZ14K, PT-RQ22K, PT-RZ21K/RS20K, PT-RZ16K, PT-RQ13K, PT-RZ12K, PT-RS11K, PT-DZ21K2, PT-DS20K2, PT-DW17K2, PT-DZ16K2, PT-DW17K, PT-DZ16K, PT-DZ13K, PT-DS12K, PT-DW11K, PT-DZ10K |
| ET-PLF10 | Lens Fixed Attachment | PT-RQ35K2/RZ34K2, PT-RQ35K/RZ34K, PT-RQ32K, PT-RZ31K/RS30K, PT-RQ25K, PT-RZ24K, PT-RQ18K, PT-RZ17K, PT-RZ14K, PT-RZ16K, PT-RQ13K, PT-RZ12K, PT-RS11K |
| ET-PLF20 | Lens Fixed Attachment | PT-RQ35K2/RZ34K2, PT-RQ35K/RZ34K, PT-RQ32K, PT-RZ31K/RS30K, PT-RQ22K, PT-RQ25K, PT-RZ24K, PT-RQ18K, PT-RZ17K, PT-RZ14K, PT-RZ21K/RS20K, PT-RZ16K, PT-RQ13K, PT-RZ12K, PT-RS11K |
| ET-D3LEW300 | Zoom lens | PT-RQ35K2/RZ34K2, PT-RQ35K/RZ34K, PT-RQ32K, PT-RZ31K/RS30K, PT-RQ25K, PT-RZ24K, PT-RQ18K, PT-RZ17K, PT-RZ14K, PT-RQ22K, PT-RZ21K/RS20K, PT-RZ16K |
| ET-D3LEW200/ ET-D3LEW201 |
Zoom lens | PT-RQ35K2/RZ34K2, PT-RQ35K/RZ34K, PT-RQ32K, PT-RZ31K/RS30K, PT-RQ25K, PT-RZ24K, PT-RQ18K, PT-RZ17K, PT-RZ14K, PT-RQ22K, PT-RZ21K/RS20K, PT-RZ16K |
| ET-D3LEW60 | Zoom lens | PT-RQ35K2/RZ34K2, PT-RQ35K/RZ34K, PT-RQ32K, PT-RZ31K/RS30K, PT-RQ25K, PT-RZ24K, PT-RQ18K, PT-RZ17K, PT-RZ14K, PT-RQ22K, PT-RZ21K/RS20K, PT-RZ16K |
| ET-D3LEW600 | Zoom lens | |
| ET-D3LEW10 | Zoom lens | |
| ET-D3LES20 | Zoom lens | |
| ET-D3LET30 | Zoom lens | |
| ET-D3LET40 | Zoom lens | |
| ET-D3LET80 | Zoom lens | |
| ET-D75LE50 | Fixed-focus lens | PT-RQ32K, PT-RZ31K/RS30K, PT-RQ22K, PT-RQ25K, PT-RZ24K, PT-RQ18K, PT-RZ17K, PT-RZ14K, PT-RZ21K/RS20K, PT-RQ13K, PT-RZ12K, PT-RS11K, PT-DZ21K2, PT-DS20K2, PT-DW17K2, PT-DZ16K2, PT-DZ21K, PT-DS20K, PT-DW17K, PT-DZ16K, PT-DZ12000, PT-D12000, PT-DW100, PT-DZ13K, PT-DS12K, PT-DW11K, PT-DZ10K, PT-DZ8700/DZ110X, PT-DS8500/DS100X, PT-DW8300/DW90X |
| ET-D75LE6 | Zoom lens | PT-RQ35K2/RZ34K2, PT-RQ35K/RZ34K, PT-RQ32K, PT-RZ31K/RS30K, PT-RQ25K, PT-RZ24K, PT-RQ18K, PT-RZ17K, PT-RZ14K, PT-RQ22K, PT-RZ21K/RS20K, PT-RZ16K, PT-RQ13K, PT-RZ12K, PT-RS11K, PT-DZ21K2, PT-DS20K2, PT-DW17K2, PT-DZ16K2, PT-DZ21K, PT-DS20K, PT-DW17K, PT-DZ16K, PT-DZ12000, PT-D12000, PT-DW100, PT-DZ13K, PT-DS12K, PT-DW11K, PT-DZ10K, PT-DZ8700/DZ110X, PT-DS8500/DS100X, PT-DW8300/DW90X |
| ET-D75LE10 | Zoom lens | |
| ET-D75LE20 | Zoom lens | |
| ET-D75LE30 | Zoom lens | |
| ET-D75LE40 | Zoom lens | |
| ET-D75LE8 | Zoom lens | |
| ET-D3LEF70 | Optional Fisheye Lens | PT-RQ35K2/RZ34K2, PT-RQ35K/RZ34K, PT-RQ32K, PT-RZ31K/RS30K, PT-RQ25K, PT-RZ24K, PT-RQ18K, PT-RZ17K, PT-RZ14K, PT-RQ22K, PT-RZ21K/RS20K, PT-RZ16K, PT-RQ13K, PT-RZ12K, PT-RS11K, PT-DZ21K2, PT-DS20K2, PT-DW17K2, PT-DZ16K2, PT-DZ21K, PT-DS20K, PT-DW17K, PT-DZ16K, PT-DZ13K, PT-DS12K, PT-DW11K, PT-DZ10K |
| ET-D75MC1 | Lens motor cover | PT-RQ32K, PT-RZ31K/RS30K, PT-RQ25K, PT-RZ24K, PT-RQ18K, PT-RZ17K, PT-RQ13K, PT-RZ12K, PT-RS11K, PT-DZ21K2, PT-DS20K2, PT-DW17K2, PT-DZ16K2, PT-DZ13K, PT-DS12K, PT-DW11K, PT-DZ10K, PT-DZ8700/DZ110X, PT-DS8500/DS100X, PT-DW8300/DW90X |
| ET-D75MKS10 | Stepping Motor Kit | PT-RQ35K2/RZ34K2, PT-RQ35K/RZ34K, PT-RQ32K, PT-RZ31K/RS30K, PT-RQ25K, PT-RZ24K, PT-RQ18K, PT-RZ17K, PT-RZ14K, PT-RQ22K, PT-RZ21K/RS20K, PT-RZ16K |
| ET-ELW06 | Zoom lens | PT-EX16K, PT-EX12K |
| ET-ELW02 | Zoom lens | |
| ET-ELW04 | Zoom lens | |
| ET-ELS02 | Zoom lens | |
| ET-ELS03 | Zoom lens | |
| ET-ELM01 | Zoom lens | |
| ET-ELT02 | Zoom lens | |
| ET-ELT03 | Zoom lens | |
| ET-ELW03 | Fixed-focus lens | |
| ET-DLE080 | Zoom lens | PT-DW750, PT-DX820, PT-DZ770K, PT-DW740S, PT-DX810S, PT-DW730S, PT-DX800S, PT-DZ680, PT-DW640, PT-DX610, PT-DZ6710, PT-DZ6700, PT-DW6300S, PT-D6000S, PT-D5000S |
| ET-C1U100 | Zoom lens | PT-REQ15, PT-REQ12, PT-REQ10, PT-REQ80, PT-REZ15, PT-REZ12, PT-REZ10, PT-REZ80 |
| ET-C1U200 | Fixed-focus lens | |
| ET-C1W300 | Zoom lens | |
| ET-C1W400 | Zoom lens | |
| ET-C1W500 | Zoom lens | |
| ET-C1S600 | Zoom lens (Supplied lens) | |
| ET-C1T700 | Zoom lens | |
| ET-C1T800 | Zoom lens | |
| ET-DLE020 | Zoom lens | PT-RQ7L, PT-RQ6L, PT-RZ7L, PT-RZ6L, PT-RCQ10, PT-RCQ80, PT-RZ120, PT-RZ990, PT-RZ890, PT-RZ790, PT-RZ690, PT-RZ970, PT-RW930, PT-RX110, PT-RZ870, PT-RZ770, PT-RW730, PT-RZ660, PT-RW620 |
| ET-DLE020G | Zoom lens | PT-RQ7L, PT-RQ6L, PT-RZ7L, PT-RZ6L |
| ET-DLE035 | Fixed-focus lens | PT-RQ7L, PT-RQ6L, PT-RZ7L, PT-RZ6L, PT-RCQ10, PT-RCQ80, PT-RZ120, PT-RZ990, PT-RZ890, PT-RZ790, PT-RZ690, PT-RZ970, PT-RW930, PT-RX110, PT-RZ870, PT-RZ770, PT-RW730, PT-RZ660, PT-RW620, PT-RZ670, PT-RW630, PT-DZ870, PT-DW830, PT-DX100, PT-DW750, PT-DX820 |
| ET-DLE055 | Fixed-focus lens | PT-RQ7L, PT-RQ6L, PT-RZ7L, PT-RZ6L, PT-RCQ10, PT-RCQ80, PT-RZ120, PT-RZ990, PT-RZ890, PT-RZ790, PT-RZ690, PT-RZ970, PT-RW930, PT-RX110, PT-RZ870, PT-RZ770, PT-RW730, PT-RZ660, PT-RW620, PT-RZ670, PT-RW630, PT-DZ870, PT-DW830, PT-DX100, PT-DW750, PT-DX820, PT-DZ770K, PT-DW740S, PT-DX810S, PT-DW730S, PT-DX800S, PT-DZ680, PT-DW640, PT-DX610, PT-DZ6710, PT-DZ6700, PT-DW6300S, PT-D6000S, PT-D5000S |
| ET-DLE060 | Zoom lens | PT-RQ7L, PT-RQ6L, PT-RZ7L, PT-RZ6L, PT-RCQ10, PT-RCQ80, PT-RZ120, PT-RZ990, PT-RZ890, PT-RZ790, PT-RZ690, PT-RZ970, PT-RW930, PT-RX110, PT-RZ870, PT-RZ770, PT-RW730, PT-RZ660, PT-RW620, PT-DZ870, PT-DW830, PT-DX100, PT-DW750, PT-DX820 |
| ET-DLE085 | Zoom lens | PT-RQ7L, PT-RQ6L, PT-RZ7L, PT-RZ6L, PT-RCQ10, PT-RCQ80, PT-RZ120, PT-RZ990, PT-RZ890, PT-RZ790, PT-RZ690, PT-RZ970, PT-RW930, PT-RX110, PT-RZ870, PT-RZ770, PT-RW730, PT-RZ660, PT-RW620, PT-RZ670, PT-RW630, PT-DZ870, PT-DW830, PT-DX100, PT-DW750, PT-DX820, PT-DZ770K, PT-DW740S, PT-DX810S, PT-DW730S, PT-DX800S, PT-DZ680, PT-DW640, PT-DX610, PT-DZ6710, PT-DZ6700, PT-DW6300S, PT-D6000S, PT-D5000S |
| ET-DLE105 | Zoom lens | |
| ET-DLE150 | Zoom lens | |
| ET-DLE170* | Zoom lens (Supplied lens) | |
| ET-DLE250 | Zoom lens | |
| ET-DLE350 | Zoom lens | |
| ET-DLE450 | Zoom lens | |
| ET-EMU100 | Zoom Lens | PT-MZ20KL, PT-MZ17KL, PT-MZ14KL, PT-MZ11KL, PT-MZ16KL, PT-MZ13KL, PT-MZ10KL |
| ET-EMW200 | Zoom lens | PT-MZ20KL, PT-MZ17KL, PT-MZ14KL, PT-MZ11KL, PT-MZ16KL, PT-MZ13KL, PT-MZ10KL |
| ET-EMW300 | Zoom lens | |
| ET-EMW400 | Zoom lens | |
| ET-EMW500 | Zoom lens | |
| ET-EMS600 | Zoom lens | PT-MZ17KL, PT-MZ14KL, PT-MZ11KL, PT-MZ16KL, PT-MZ13KL, PT-MZ10KL |
| ET-EMT700 | Zoom lens | |
| ET-EMT800 | Zoom lens | |
| ET-EMS650 | Zoom lens | PT-MZ20KL, PT-MZ17KL, PT-MZ14KL, PT-MZ11KL Note: ET-EMS650, ET-EMT750, and ET-EMT850 will be available from CY2023 Q1. |
| ET-EMT750 | Zoom lens | |
| ET-EMT850 | Zoom lens | |
| ET-ELW22 | Zoom lens | PT-MZ882, PT-MZ782, PT-MZ682, PT-MZ880, PT-MZ780, PT-MZ680, PT-MZ770, PT-MZ670, PT-MZ570, PT-MW730, PT-MW630, PT-MW530, PT-EZ770Z, PT-EW730Z, PT-EX800Z, PT-EZ580, PT-EW640, PT-EW540, PT-EX610, PT-EX510 |
| ET-ELW20 | Zoom lens | PT-MZ882, PT-MZ782, PT-MZ682, PT-MZ880, PT-MZ780, PT-MZ680, PT-MZ770, PT-MZ670, PT-MZ570, PT-MW730, PT-MW630, PT-MW530, PT-EZ770Z, PT-EW730Z, PT-EX800Z, PT-EZ580, PT-EW640, PT-EW540, PT-EX610, PT-EX510, PT-EZ570, PT-EW630, PT-EX600, PT-EW530, PT-EX500 |
| ET-ELT20 | Zoom lens | PT-MZ670, PT-MZ570, PT-MW630, PT-MW530, PT-EZ770Z, PT-EW730Z, PT-EX800Z, PT-EZ580, PT-EW640, PT-EW540, PT-EX610, PT-EX510, PT-EZ570, PT-EW630, PT-EX600, PT-EW530, PT-EX500 |
| ET-ELT21 | Zoom lens | |
| ET-ELT22 | Zoom lens | PT-MZ882, PT-MZ782, PT-MZ682, PT-MZ880, PT-MZ780, PT-MZ680, PT-MZ770, PT-MZ670, PT-MZ570, PT-MW730, PT-MW630, PT-MW530, PT-EZ770Z, PT-EW730Z, PT-EX800Z |
| ET-ELT23 | Zoom lens | |
| ET-ELU20 | Zoom lens | PT-MZ882, PT-MZ782, PT-MZ682, PT-MZ880, PT-MZ780, PT-MZ680 |
| ET-ELW21 | Fixed-focus lens | PT-MZ882, PT-MZ782, PT-MZ682, PT-MZ880, PT-MZ780, PT-MZ680, PT-MZ770, PT-MZ670, PT-MZ570, PT-MW730, PT-MW630, PT-MW530, PT-EZ770Z, PT-EW730Z, PT-EX800Z, PT-EZ580, PT-EW640, PT-EW540, PT-EX610, PT-EX510, PT-EZ570, PT-EW630, PT-EX600, PT-EW530, PT-EX500 |
| ET-ELS20** | Zoom lens (Supplied lens) | PT-MZ880, PT-MZ780, PT-MZ680, PT-MZ770, PT-MZ670, PT-MZ570, PT-MW730, PT-MW630, PT-MW530, PT-EZ770, PT-EW730, PT-EX800, PT-EZ580, PT-EW640, PT-EX610, PT-EW540, PT-EX510 |
| ET-ELW31 | Zoom lens | PT-EZ590, PT-EW650, PT-EX620, PT-EW550, PT-EX520 |
| ET-ELW30 | Zoom lens | |
| ET-ELT30 | Zoom lens | |
| ET-ELT31 | Zoom lens |
* 僅限美國/歐洲。 ET-DLE170 相當於隨附鏡頭。注意：解析度為 WUXGA。數值取決於解析度。
** 僅限美國/加拿大/拉丁美洲/歐洲/大洋洲。
註：ET-DLE170 和 ET-ELS20 的供貨情況因國家而異。
